Name: PFG05X
Brand: CAMLogic
SKU: PFG05X-216

Rotary blade level switch for monitoring a level threshold, generally full or empty. For solid materials in silos or bins. Sturdy construction with aluminium casing. Guaranteed reliability at an excellent quality price ratio. The ideal sensor for heavy-duty conditions and continuous cycles, even in atmospheres that are potentially explosive owing to the presence of dusts/powders. Conforms to the most recent ATEX standards.

Advantages

Version for use in contact with corrosive materials or food products.
Easy to install: specific tools or settings are not required.
Provides the highest standard of safety in the presence of potentially explosive dusts/powders.
Probe can be adapted to the material with a broad range of plastic or stainless steel paddles.
Mechanical and electrical customizing of the measuring instrument on request.
Extremely reliable, the instrument can be used in addition to radar, capacitive, ultrasound or continuous level probes as a safe signal.

Product line: Rotary paddle level switches

Materials: Level sensors for corrosives - Level sensors for solids - Level sensors for food products

Configure and request an offer Request information

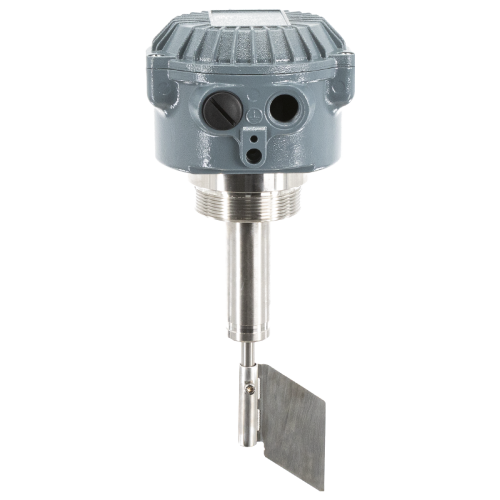

PFG05X rotary blade level indicator for solids - stainless steel version

Certifications

ATEX

II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db

IECEx

Ex ta/tb IIIC T85°C Da/Db

Idoneità Alimentare

Safe for food contact

Eurasian Conformity

EurAseC Conformity

UKCA

UK Conformity.

ATEX

II 3D Ex tc IIIB T85°C Dc

Technical Specifications

Casing and cover in die-cast aluminium
Shaft in AISI 303 / EN 1.4305 stainless steel on life-lubricated sealed bearings, with dust-tight retaining ring in FKM
All parts in contact with the product are in AISI 303 / EN 1.4305 or AISI 304 / EN 1.4301 stainless steel
Broad range of paddles in AISI 304 / EN 1.4301 stainless steel
2” 1/2 Gas (BSPP) process connection and M20x1,5 double cable entry
Rotation speed 1 turn / minute
Ambient temperature -20° to +70°C (-4° ... +158°F)
- With low temperature optional -40° to +70°C (-40° ... +158°F)
Process temperature -20° to +70°C (-4° ... +158°F)
Process pressure 0.8 to 5 bar (11,6 to 72,5 psi)
IP65 protection rating (dustproof, protection against water jets)
Power consumption max 4 W
Contact capacity 10A at 250V (AC)
Micro switch SPDT output signal

If the product is to be used in areas with explosive atmospheres, the following characteristics apply:

Ambient temperature -20° to +70°C (-4° ... +158°F)
- With low temperature optional -40° to +70°C (-40° ... +158°F)
Process temperature -20° to +70°C (-4° ... +158°F)
Process pressure 0.8 to 1.1 bar (11.6 to 15.9 psi)

CONFIGURATOR

Electrical specifications

The electrical part of the entire range of PFG05 level probes can be supplied with different voltage ratings and numerous optionals.

Available voltage ratings: 115/230V or 24/48V – 50 … 60Hz (AC) and 24V (DC).
Standard version with faston connectors.
Paddle terminals or self-locking spring terminals are available on request.
Voltage monitoring: to remotely check that the indicator is energized correctly.
Double contact: additional potential-free contact for monitoring the automatic parts of the system.
Rotation control: enables indicator operation to be monitored remotely.
4 RPM: increased rotation speed to reduce trip time.
Low temperatures: enable the instrument to function down to -27°C.

Choice of paddle

An essential component that ensures the level indicator functions correctly, the paddle is the basis from which customizing starts since it can be adapted to every type of use.
To make the best choice, it is important to bear in mind the following 5 key points:

Each material has a minimum density that must be detected by the instrument.
The minimum diameter of the entry hole through which the paddle can pass if it cannot be installed inside.
The diameter occupied by the paddle as it turns.
The number of blades changes depending on the intensity of the disturbances to which the paddle is exposed.
Polyamide or stainless steel, depending on the type of material with which the paddle comes into contact.

Documentation

Technical datasheet

3D model (STEP)

Manual

3D Paddles models (STEP)

M12 connector connection diagrams (ENG)

CE Declaration of conformity

CE Declaration of conformity (models with lamp)

UK Declaration of conformity

UK Declaration of conformity (models with lamp)

Food Contact Compliance

EAC Declaration of conformity (products >50V)

EAC Declaration of conformity (products <50V)

Brochure

Paddles list
