Our commitment to providing detailed and accessible documentation is a testament to CAMLogic's dedication to excellence and the full satisfaction of our customers.
We firmly believe that offering clear and readily available information resources not only improves the customer experience, but also enhances our reputation in the competitive level sensor market. This openness policy not only facilitates the selection of the ideal product, but also lays the foundation for a lasting relationship based on trust and reliability with our customers.
Where can I find all the information about CAMLogic products?

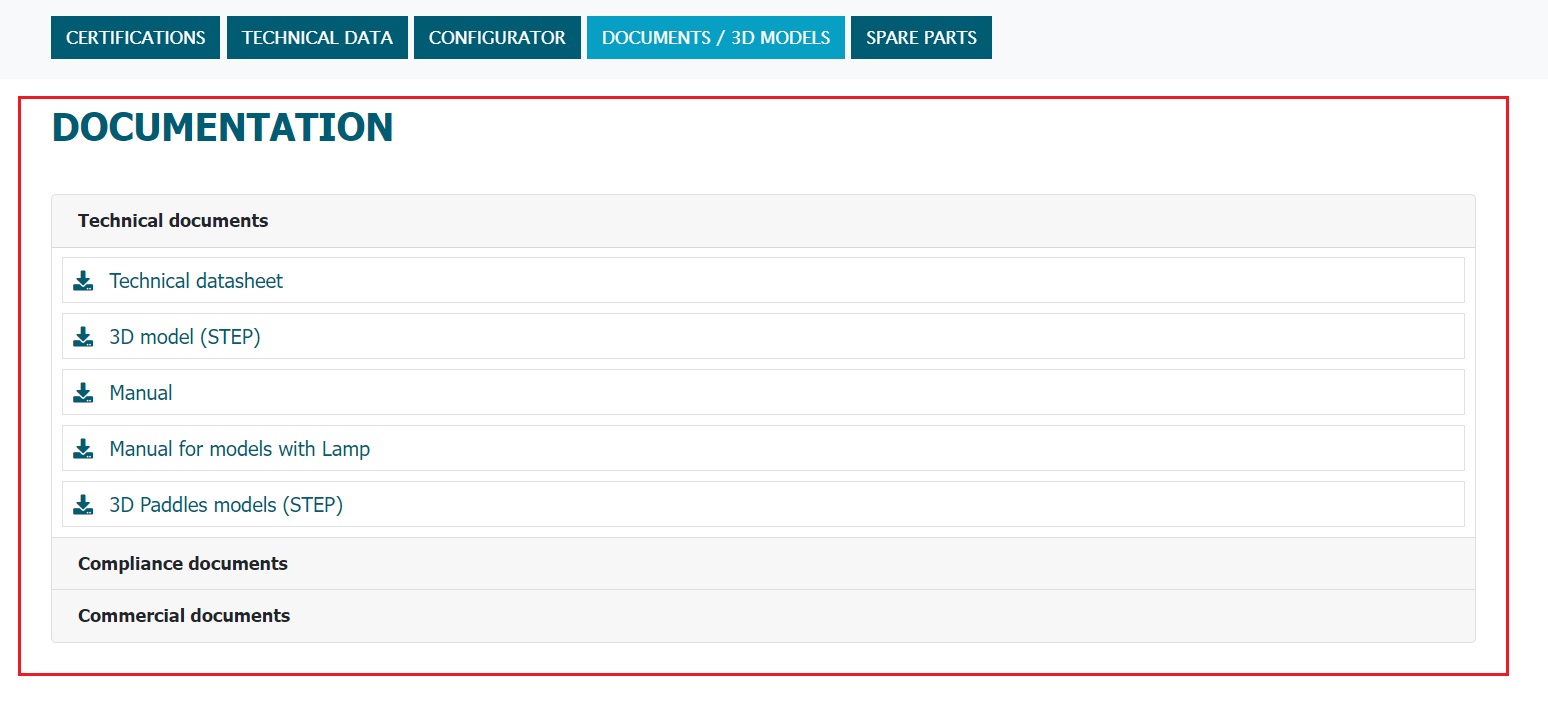

Our product technical sheets can be found in the dedicated section on each product page just below the configurator section and are an invaluable source of information. This direct access allows our customers to obtain all the necessary specifications quickly and efficiently. Whether you're looking for technical specifications, applications, dimensional data, 3D models: every detail is readily accessible.
3D drawings and compliance documents
Another key aspect of our offering is the 3D drawings of level switches and compliance documents. These advanced visual tools allow customers to visualize the product in a more concrete way, helping them to better understand how it will integrate into their applications. In addition, the compliance documents highlight CAMLogic's commitment to international standards, ensuring the highest quality and safety for our customers.
Technical sheets for every CAMLogic product for your design efficiency
Access to all our technical documents not only facilitates a smoother and more informative customer experience but is also an essential pillar in the decision-making process. With these, buyers can independently evaluate technical specifications, compare different models, and make informed decisions, eliminating the need for additional inquiries. This approach not only saves valuable time, but also reduces the margin of error in selecting the most suitable product for their needs.
Datasheets - Rotary paddle level switches
PFG05
Rotary paddle level switch with die-cast aluminum body and threaded connection to G 2" ½ process or with mounting flange. A wide choice of helixes allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized with special lengths and electrical accessories.
PFG05C
Rotary paddle level switch sturdy die-cast aluminum with threaded connection to G 2" ½ process or with mounting flange. It is a short shaft variant. The wide choice of paddles allows the level sensor to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized with special lengths and electrical accessories.
PFG05X
Stainless steel level sensor with rotary paddle, with G 2" ½ process connection or with mounting flange. Particularly suitable for the detection of food and corrosive materials. The wide selection of paddles allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG05AT
Level sensor with rotary paddle made of aluminum and stainless steel, with G 2" ½ process connection or with mounting flange. Designed for high temperature and explosion risk environments, also ideal for corrosive substances. The range of paddles allows the level sensor to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG05ATFV
Level sensor with rotary paddle made of aluminum and and stainless steel for all in product-contact parts. It can be applied with flange. It is a variant for condensate drainage and temperatures up to 600°C.The selection of paddles allows the level sensor to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG57
Small-sized level sensor with rotary paddle, made of rugged die-cast aluminum with G 1" 1/2 (BSPP) process connection or with flange. A wide choice of paddles allows the level sensor to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized with special lengths and electrical accessories.
PFG57X
Small-sized level sensor with rotary paddle, made of aluminium and stainless steel, with G 1" 1/2 (BSPP) process connection or with flange (or tri-clamp). Particularly suitable for the detection of food and corrosive materials. The range of paddles allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG57AT
Small-sized rotative level sensor, made of aluminum and stainless steel , with G 1" 1/2 (BSPP) process connection or with flange. Designed for high temperature and explosion risk environments, also ideal for corrosive substances. The selection of paddles allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG57I
Small-sized level sensor with rotary paddle, made of sturdy die-cast aluminum. It can be applied with G 1" 1/2 (BSPP) process connection or flange. It is a specific variant for plaster. The instrument can be customized with special lengths and electrical accessories.
PFG09
Level sensor with rotary paddle, explosion-proof, suitable in environments with gaseous, explosive or flammable mixtures. It is made of aluminum, and it can be applied with G 1" ½ process connection or flange. A wide choice of paddles allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG09Z
Rotative level sensor made of aluminum and stainless steel, with G 1" ½ process connection or flange. Particularly suitable for the detection of food products and corrosive materials. The selection of paddles allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
PFG09ZATF
Level sensor with rotary paddle made of aluminum and stainless steel, with flange. Variant for condensate drain, also designed for high temperature and explosion risk environments. A wide range of paddles allows the level switch to detect materials with densities between 0.1 and 2.0 kg/dm3. The instrument can be customized.
Datasheets - Capacitive level switches
PFG06
Capacitive level sensor based on the principle of sensing the electrical capacitance of a capacitor. It is made of aluminum and stainless steel, with G 1" ½ process connection or with flange or tri-clamp. It is suitable for contact with food products. The capacitive level sensor can be customized.
Datasheets - Pressure level switches
MN21
Membrane level sensor made of sturdy die-cast aluminum. No power supply required. The instrument can be customized with LED indicator lamp and M12 circular connector.
MN03
Membrane level sensor made of sturdy die-cast aluminum. No power supply required. The instrument can be customized with rubber, FKM membranes or LED indicator lamp.
Datasheets - Pendulum level switches
ILP3
Pendulum level sensor made of sturdy die-cast aluminum, made for situations where materials such as powders and granulars by depositing take on a conical shape. ILP3 sensor does not require a power supply. The instrument can be customized based on your needs.
Datasheets - Floating level switches
PFGLP
Float level sensor made of sturdy die-cast aluminum and stainless steel, with mounting flange. No power supply required. The instrument can be customized with special lengths and accessories such as curved floats and rubber bellows.
PFGLP22
Float level sensor made of rugged die-cast aluminium and stainless steel, with G 2" connection or flange. No power supply required. Resistant up to 100 degrees. The instrument can be customized with special lengths and accessories such as curved floats and silicon bellows.
CLR20
Float level sensor built with permanent magnet and frictionless reed contacts. It has a G ⅜ connection. It does not require power supply. Ideal for use in contact with corrosive or food materials. The instrument can be customized with special lengths and accessories.
CLR22
Float level sensor built with permanent magnet and frictionless reed contacts. It has a G ⅛ connection. It does not require power supply. It is ideal for use in contact with corrosive or food materials. The instrument can be customized with special lengths and accessories.
Datasheets - Conductive level Switches
CLC40
Conductive level sensor with G 1" ½ process connection. The CLC40 is provided with 3 stainless steel rods that allow the control of two level thresholds for each type of liquid. The instrument can be customized with special lengths and electrical accessories.
Datasheets - Speed Monitors
SMD20
Rotational speed monitor for any transmission shaft, made of rugged die-cast aluminum, with direct four-hole connection, mounting flange or bracket. The instrument can be customized with a connection joint and the display for visual control.
SMD20P
Rotational speed monitor for any transmission shaft, made of rugged die-cast aluminum, with direct four-hole connection, mounting flange or bracket. It is an inductive variant. The instrument can be customized with a connection joint and the display for visual control.
SMD20VN
Signaling device that ensures control of the rotational speed of any transmission shaft, with bracket connection. The instrument can be customized with a connection joint and the display for visual control.
In sum, the availability of CAMLogic’s data sheets is not just an additional resource; it’s a vital component of our service offering.
This reflects our commitment to providing not only quality products, but also excellent, transparent and easily accessible customer service. We encourage our customers to take full advantage of these resources to improve their purchasing experience and the effectiveness of their investment in level measurement technology.
